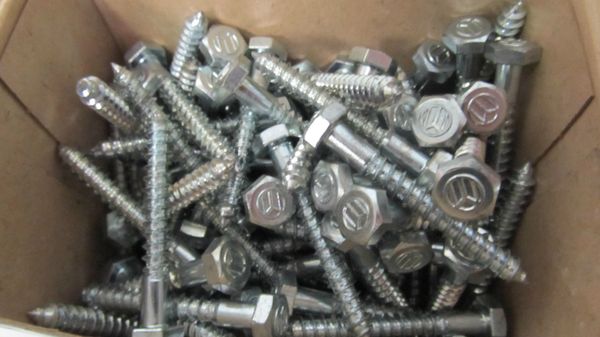

1/4 x 2 inch Zinc plated Steel bodied Lag Screws w/ Hex Head Military Grade 100
U.S Military Grade Lag Screws
Made with Pride in the USA by Atlas Screw and Specialty in New Bedford, MA
NSN: 5305-00-402-5748
SIZE: 1/4 x 2 inch with Hex Head
New box of 100
See below for tech specifics:
Techincal Specification:
| FASTENER LENGTH | 2.000 INCHES NOMINAL |
| HARDNESS RATING | 60.0 ROCKWELL B MINIMUM OVERALL |
| HEAD HEIGHT | 0.150 INCHES MINIMUM AND 0.188 INCHES MAXIMUM |
| HEAD STYLE | HEXAGON |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.250 INCHES |
| NONMACHINE THREAD STYLE | GIMLET POINT (TYPE A, AB OR BA) |
| MATERIAL | STEEL OVERALL |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| SHOULDER DIAMETER | 0.237 INCHES MINIMUM FIRST SHOULDER AND 0.260 INCHES MAXIMUM FIRST SHOULDER |
| SHOULDER LENGTH | 0.094 INCHES MINIMUM FIRST SHOULDER |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B633 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| WIDTH BETWEEN FLATS | 0.425 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
